Maboti Aakulu A Hex Opanga Zitsulo

DONGSHAO ndi m'modzi mwa akatswiri aku China Maboti Aakulu Akuluakulu a Hex kwa opanga ndi ogulitsa Zitsulo Zomangamanga, ngati mukufuna Maboti Aakulu Akuluakulu a Hex for Steel Structure ndi mtengo wotsika, tifunseni tsopano!

Tumizani Kufunsira

Mafotokozedwe Akatundu

Pezani kusankha kwakukulu kwa Maboti Akuluakulu a Hex for Steel Structure ochokera ku China ku DONGSHAO. zida ndi zitsulo kapangidwe zomangamanga; specifications, akhoza kukwaniritsa zosowa zosiyanasiyana mbali specifications, osiyanasiyana ntchito; Ndi mawonekedwe okhazikika, kukhazikitsa kosavuta, kukonza kosavuta.

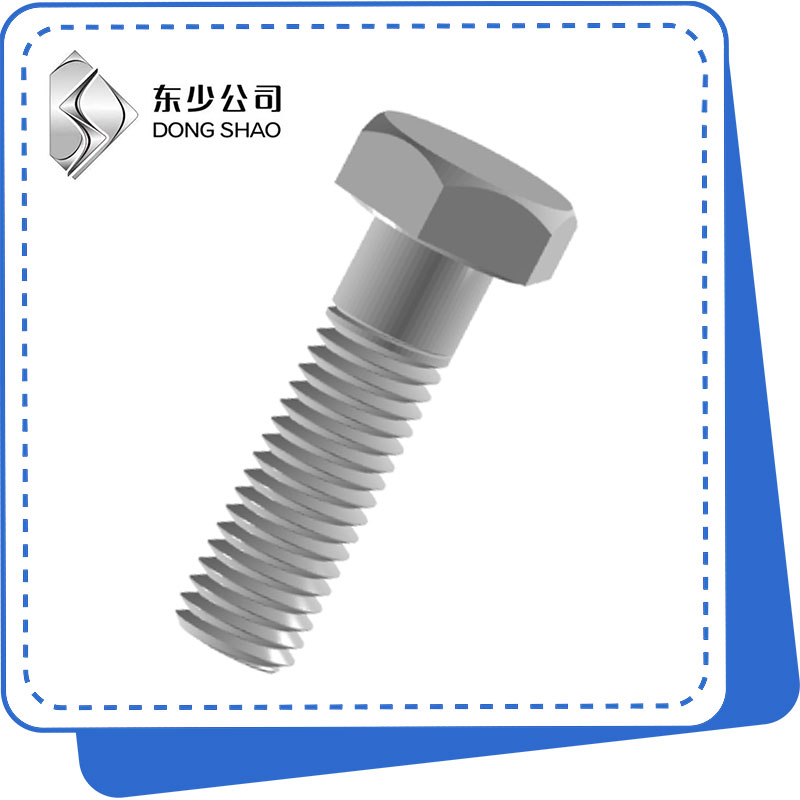

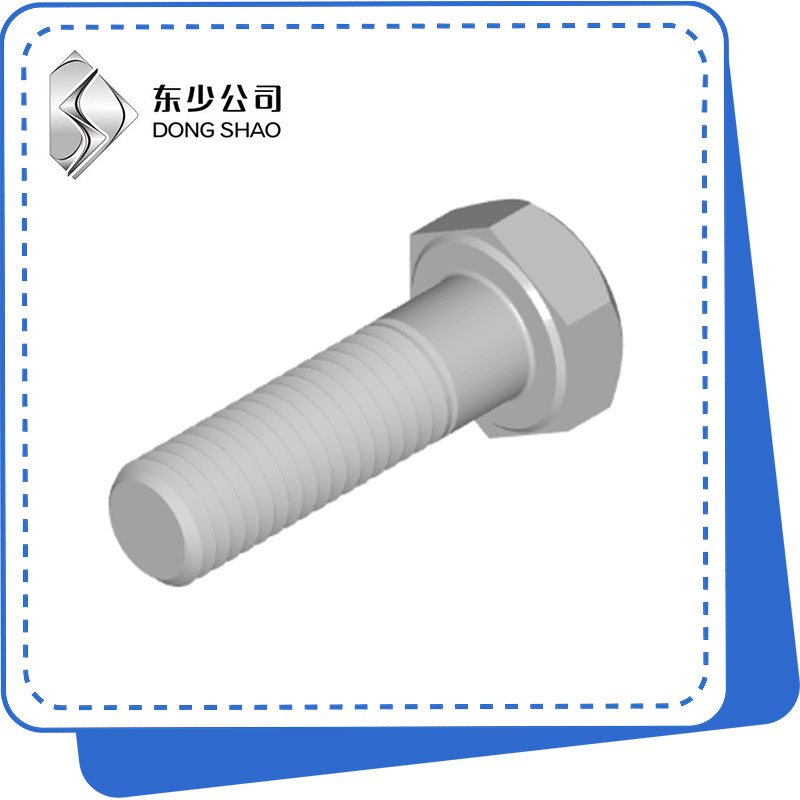

Chitsulo kamangidwe lalikulu hexagon bawuti ndi mtundu wa cholumikizira chimagwiritsidwa ntchito zitsulo kapangidwe zomangamanga, amene makamaka ntchito kulumikiza malo kugwirizana mbale zitsulo kapangidwe.

Product Parameter

(mm)	M12	M16	M20	M22	M24	M27	M30	M36
P	1.75	2	2.5	2.5	3	3	3.5	4
b max	23	28	33	34	37	39	42	50
b min	21	26	31	32	34	37	40	48
ndi max	15.2	19.2	24	26	28	32	35	41
ds max	12.7	16.7	20.84	22.84	24.84	27.84	30.84	37
ds min	11.3	15.3	19.16	21.16	23.16	26.16	29.16	35
ndi min	23.91	29.56	35.03	39.55	45.2	50.85	55.37	66.44
k max	8.45	10.75	13.9	14.9	15.9	17.9	20.05	24.05
k min	7.55	9.25	12.1	13.1	14.1	16.1	17.95	21.95
r min	1.2	1.2	1.5	1.5	2	2	2	2
s max	22	27	32	36	41	46	50	60
s min	21.16	26.16	31	35	40	45	49	58.8
